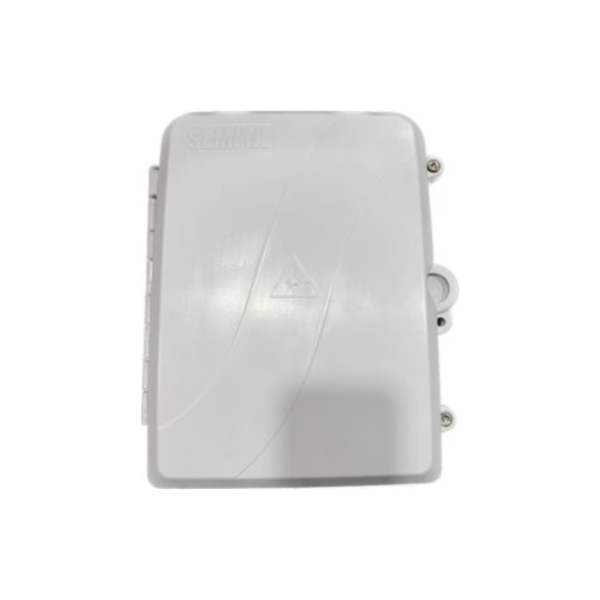

24F Fiber Distribution Box semita

Features

Industry Standard User Interface, is made of high impact plastic.
Light and handy with easy maintenance, has special key-operated switches.
Anti-UV, Ultra violet resistant and rainfall resistant.
Splicing tray has two sides – one side for splitter & out-cable arrangement; the other side for the incoming cable and splicing protection.
Splicing:12~24cores.
3 inlet ports, 16 outlet ports
mid-span provision provided with a removable plate provision for cable entry
Can accommodate PLC splitter and box style splitter. Max splitting 1:16.
Can be used in indoor and outdoor, Wall-mounting.

Category: FTTH

Type	Measurements
Max size（D×W×H)	317.5 × 248 × 101mm
317.5 × 248 × 101mm	1.75 kg
Radius of curvature	≥40mm
Drop cable entry hole diameter	for upto 6mm cable
Splice tray excess loss	≤0.01dB
Max capacity(single fiber)	24 cores
Temperature range	– 40℃ ~ + 80℃
Lateral compression resistance	≥2000N / 10 cm
Impact resistance	≥20N.m
