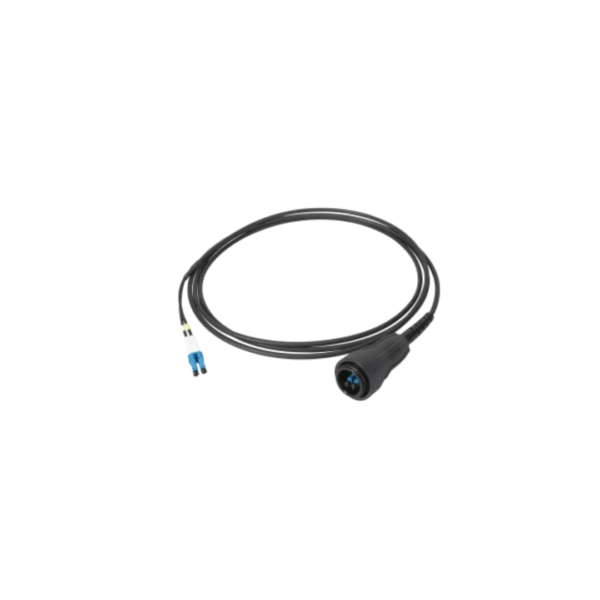

Fibre To The Antenna -CPRI

Fibre To The Antenna -CPRI

Fibre To The Antenna -CPRI

Features & Advantages

Available in Multimode and Single mode versions
Any connector options like FC, SC. LC, ST & Hybrid
Uses high quality ferrules and connectors
Factory terminated and 100% tested for Insertion
Loss and Return Loss
Individual test sheet and unique product identification number for traceability
Manufacturing process qualified to meet end face geometry requirements
Good repeatability; Mutual thrust performance
Available in IP65, IP66, IP67, IP68

Applications

Data centre & Datacom applications
Telecommunications and FTTx
CATV
Fiber optic test equipment & sensors
Passive optical networks & fiber communication systems

Category: FTTA

Description

Technical Specification

Type	Specification
Fibre Type	Multi-Mode – 62.5/125 (OM1), 50/125 (OM2), OM3, OM4	Single mode – OS1/OS2 9/125µm, (G657a & b), G652D, G657 B3
Connector Types	SC, LC, FC, ST,E-2000, Mini LC – Simplex & Duplex
End face finish	PC, UPC, APC

Optical Performance

Type	Specification	Value
Insertion Loss (Multimode)	SC, LC, FC, ST,E-2000, Mini LC	≤ 0.3 dB
Insertion Loss (Single mode)	SC, LC, FC, ST,E-2000, Mini LC	≤ 0.3 dB
Return Loss (Multi mode)	SC, LC, FC, ST,E-2000, Mini LC	≥ 35 dB for UPC ≥ 60 dB for APC
Return Loss (Single mode)	SC, LC, FC, ST,E-2000, Mini LC	≥ 50 dB for UPC ≥ 60 dB for APC
